Layout inspection is systematic review of existing layouts with approved design, specifications, and drawings. It is verifying present arrangement of materials, components, equipment as well as layouts to ensure all things are at correct position.
The process helps to management to inspection engineering drawings, alignments, elements and components are as per dimensions, distances are accurate, and checking the tolerance limits.
Dimensional Accuracy
The layout inspection is partially engineering process, where all the dimensions of the engineering drawing are takes for review during this process. Usually, equipment, or components are required to check they are installing in the correct position. Distances, heights, and alignments of the machinery, equipment and all the things are as per tolerance limits.
Rework & Wastage
The layout inspection is usually conducts at the time machinery, equipment and other instrument after commission. Hence, in case of any error detects during process. Such as welding, assembling, or concreting. The correcting layout mistakes can be very expensive.
Safety and compliance
As per engineering drawing or layout, in case any wrong layout is implemented. It can be big safety risks, such as equipment to close to each other may trouble to employees, and also generate too much heat. Blocked Pathways, unsafe electrical and mechanical distances, fire safety clearance are violated.
Quality of work
The machineries are efficiency works if the correct layout plan is implemented. In case of poor layout is implement during the process, it may lead the defects, unstable structures, and or malfunctioning equipment.
Design Intent
The layout inspection is confirming that the actual setup is follows the intent of designer. It is verify design intent with specific intentions such as workflow, material flow, accessibility, maintenance space, ventilation and air flow etc.
Smooth Operations
Good Layout it means smooth manufacturing operations. The inspection is conducts to ensure that each operation should sufficient working space, easier to material movement, and correct utilities. Such as power, water, air, and drainage.
Layout Inspection Plan
The layout inspection plan is systematic planning to review the existing machinery, equipment, structures, or components are installed as per drawings.
Usually, the layout inspection plan covering equipment installation, machine and structural layout, piping, electrical and utility. As well as assembly lines, civil foundation, cleanroom and ducting layouts.
The entire inspection plan is jointly conducts by project engineer, Quality assurance inspection team, and safety officer. They are performing their associate layouts. Such as project engineer ensures the availability of approved drawing, coordinates layout preparation, and technical clarifications. Quality inspection team are performing dimensional and visual inspection. Safety officers review the safety clearances, confirms compliances with standards.
Layout inspection schedule
The schedule is actually describing the when, who, and how often with which project stages layout inspection is carry out. It is inspection timeline for performing step by step inspection. Check here as below sample layout inspection schedule sheet.

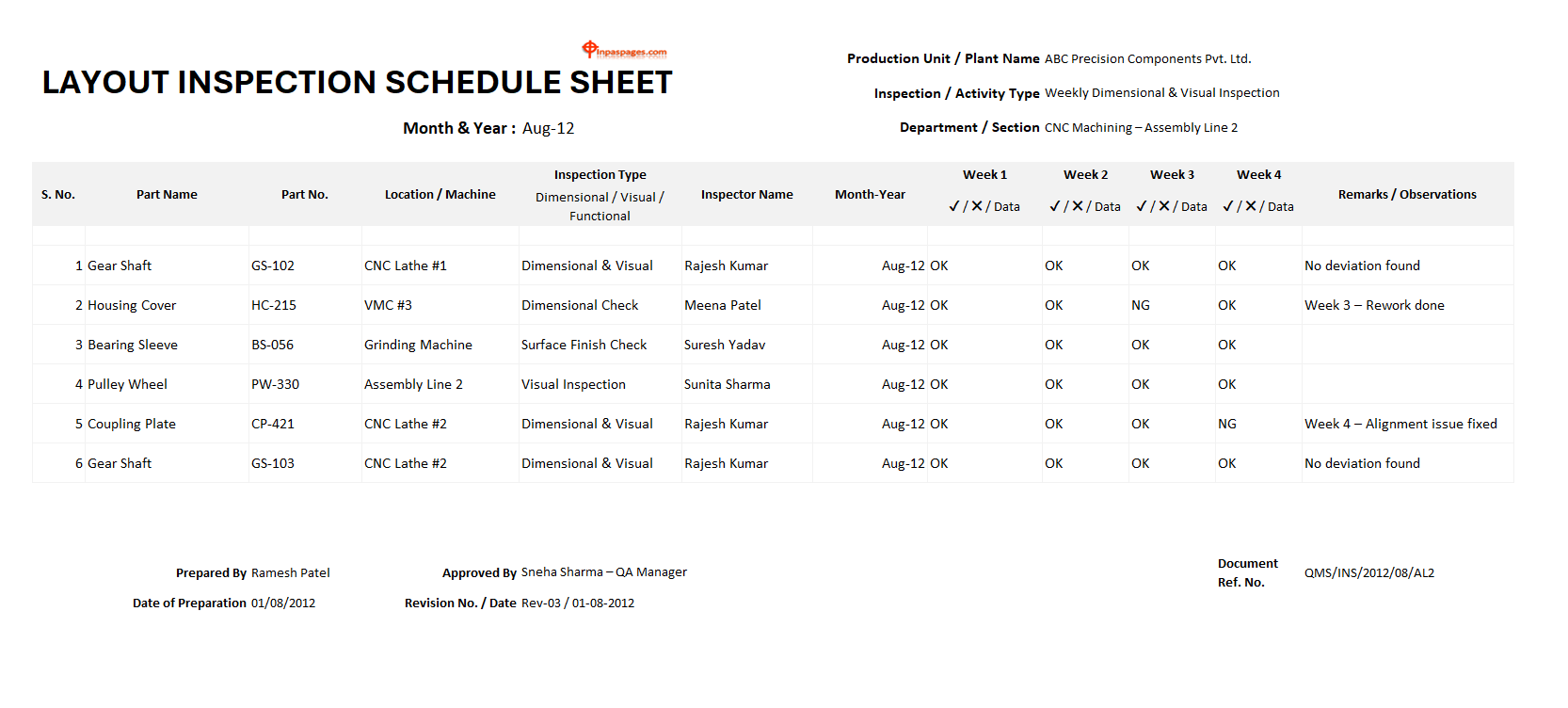

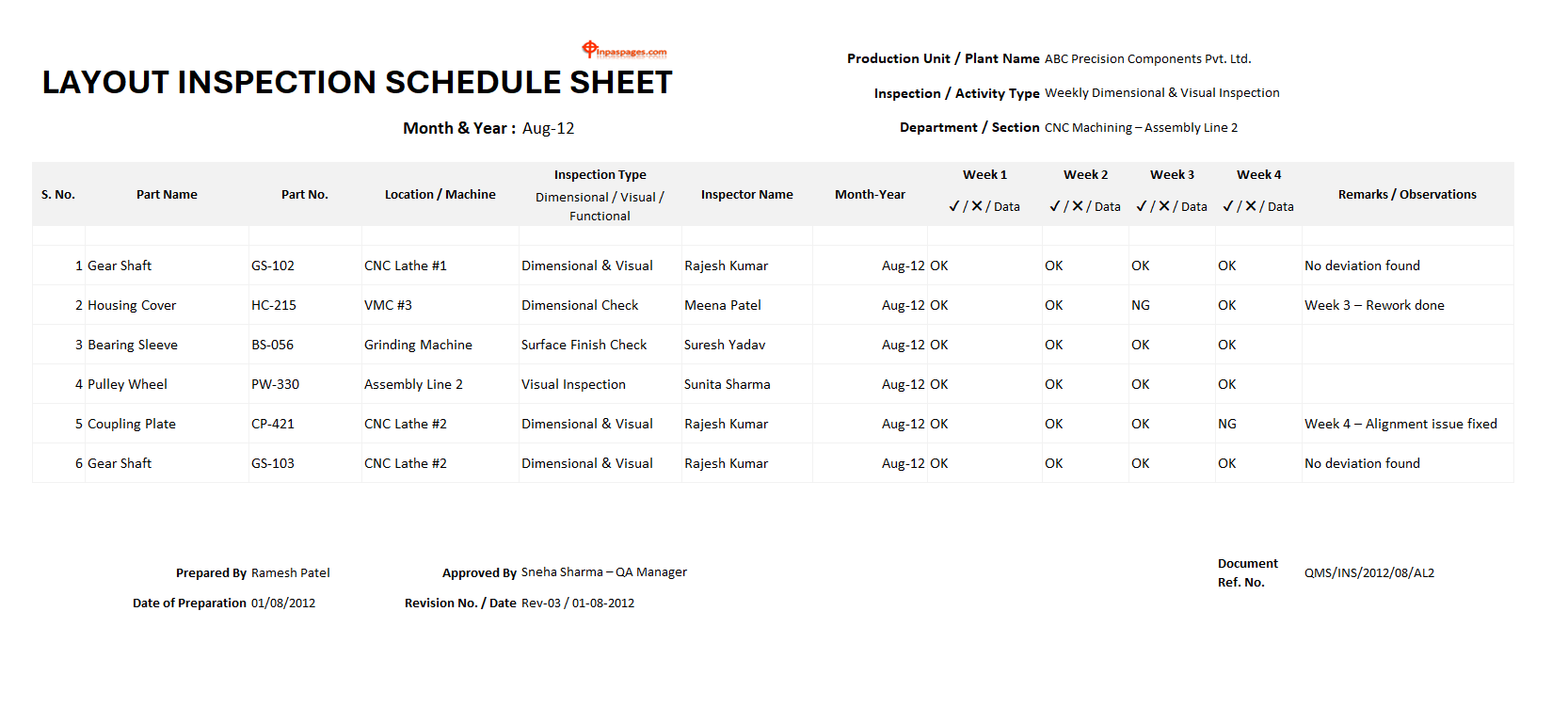

Layout inspection schedule sheet
The layout inspection is actually joint operation from different departments for different purpose. Such as the project engineer and quality team are reviewing the drawing. The primary layout inspection is conduct at same day, and secondary verification after correction by quality team.
Quality team also inspection pre-installation, in-process alignment as well as final layout inspection.
The layout inspection schedule sheet is document that helps to control and ensure the accuracy, quality, and safety at each department, and section of the layout work. It is proper plan, and tracking system for inspection for decreasing the mistakes for layout requirements.
